Architecture

ibkr runs on your machine and connects to one Interactive Brokers TWS or IB Gateway session. It adapts that session for humans, AI hosts, and the Canary app, and it adds a risk harness. One ownership rule shapes the design:

The daemon owns all broker-connected and runtime-state capability: the connection, observed state, schedulers, durable authority, and policy execution. Every other process adapts typed contracts for its audience, and none of them owns broker state.

A few local workflows are deliberate exceptions: watchlist edits, setup, updates, process management, and offline research or backtests all run without daemon RPC.

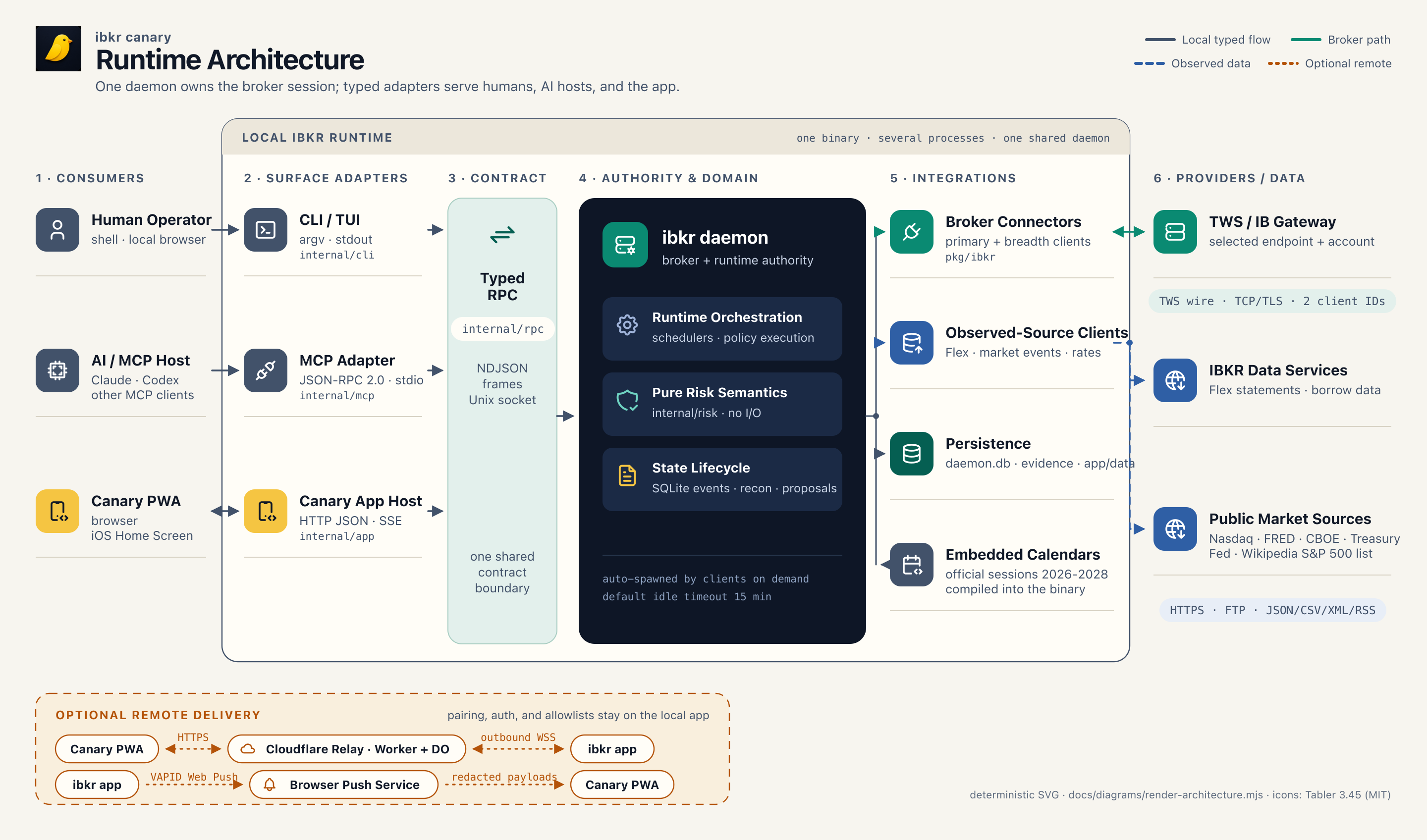

01System Overview

PNG fallback · SVG source generator · Tabler Icons license

The numbered columns are layers of one system, not six separate services: consumers, surface adapters, the shared typed contract, daemon authority and domain logic, integration clients, and external providers or data.

The default deployment has one shared daemon. ibkr mcp is an adapter process owned by each MCP host, not a second daemon, and ibkr app is a separate HTTP/PWA process. Inside the daemon, a primary broker connection serves interactive, account, and gamma work, while a second client connection carries the S&P 500 breadth history fan-out.

02Runtime Processes

All local modes ship in the same ibkr binary, but they differ in lifetime and authority.

Clients auto-spawn the daemon when the socket is absent, and it exits after 15 idle minutes unless foreground mode disables the timeout. daemon.db and the separately listed configuration, evidence, and app files survive; refreshable in-memory views do not.

03Code Ownership Layers

• pkg/ibkr is the clean-room TWS wire client. Protocol framing, sockets and TLS, request IDs, broker callbacks, contract resolution, and order-wire details live here.
• internal/daemon is the long-running authority. It owns both broker connectors, the external-source clients, refreshable views, schedulers, daemon.db, risk-capital runtime state, daily Flex ingestion, and post-trade reconciliation.
• internal/risk is the pure evaluation library behind advisory verdicts: thresholds and fingerprints, canary signal types, option math, the daily trading rulebook, and risk-constitution evaluation. It does no I/O and owns no broker state.
• internal/rpc defines the typed method names and request/response structs that daemon, CLI, app, and MCP adapters share. Add fields here first; teach surfaces to render them second.
• internal/cli adapts commands to daemon methods or to one of the local-only workflows. Broker policy and state do not belong in the renderer.
• internal/mcp adapts MCP tools and resources to daemon contracts. Tool descriptions are product surface and must match the real authority and data quality.
• internal/app owns the HTTP host, device auth, app-local persistence, live polling and streaming, SSE fanout, Web Push, and the optional outbound relay. The live cache is the normal read path. Settings, reviews, and order, proposal, or opportunity actions make direct typed daemon calls instead.
• cloudflare/remote-relay is a Worker plus a Durable Object, used as transport. It forwards framed HTTP and SSE traffic over the app's outbound connector. It owns no device grants, pairing sessions, browser sessions, daemon access, or broker credentials.
• web/app is the embedded no-build Canary SPA and its service worker. Global account, market, and sync state stays outside individual tab content.

The desk-facing Trading Policy reference explains who decides each control, what is advisory today, how runtime-local version checks behave, and which broker-write gates no policy may weaken.

04Data Flows and Protocols

The daemon protocol and the MCP protocol are different on purpose; only the MCP side is JSON-RPC 2.0.

05Broker and External Data Sources

Not all market context arrives through TWS or Gateway.

Market-event, earnings-provider, contract-resolution, and membership projections plus retained observations live in daemon.db. The primary FTP borrow-fee state and the exact-contract TWS fallback use separate documents, so a portfolio-only result can never replace the global last-good. TWS keys combine an opaque account-scope fingerprint with the complete exact contract identity; observations remain decision-ineligible while the scale is uncommissioned. Persisted fallback attempts are dated context and never suppress a fresh post-restart entitlement/data read. Earnings and FTP borrow-fee attempts retain typed failure and retry state there so a restart cannot erase a failed source read. Other refreshable views stay in memory or use disposable scratch only.

Reviewed terminal/non-reporting earnings evidence is also daemon-owned typed state. An optional private [rulebook].terminal_evidence_file is read only at startup as a validated import/update; rule snapshots serve the committed exact-contract SQLite revision and never fall back to the file or ticker text. Explicit removal retains a per-ConID revocation watermark in that SQLite document; reactivation requires record verification strictly later than the watermark, so bumping only the import wrapper cannot resurrect old evidence. Every initialize/import/update/revoke revision atomically appends a typed, prose-free authority-change observation with the old/new catalog fingerprints, review times, and per-contract dispositions. Rule-transition event payloads link any accepted terminal classification back to that chain with the exact contract ConID, authority revision and record fingerprint, review and validity times, and classification. They emit an explicit empty linkage list otherwise and exclude issuer/symbol text, CIK, source URLs, and evidence prose.

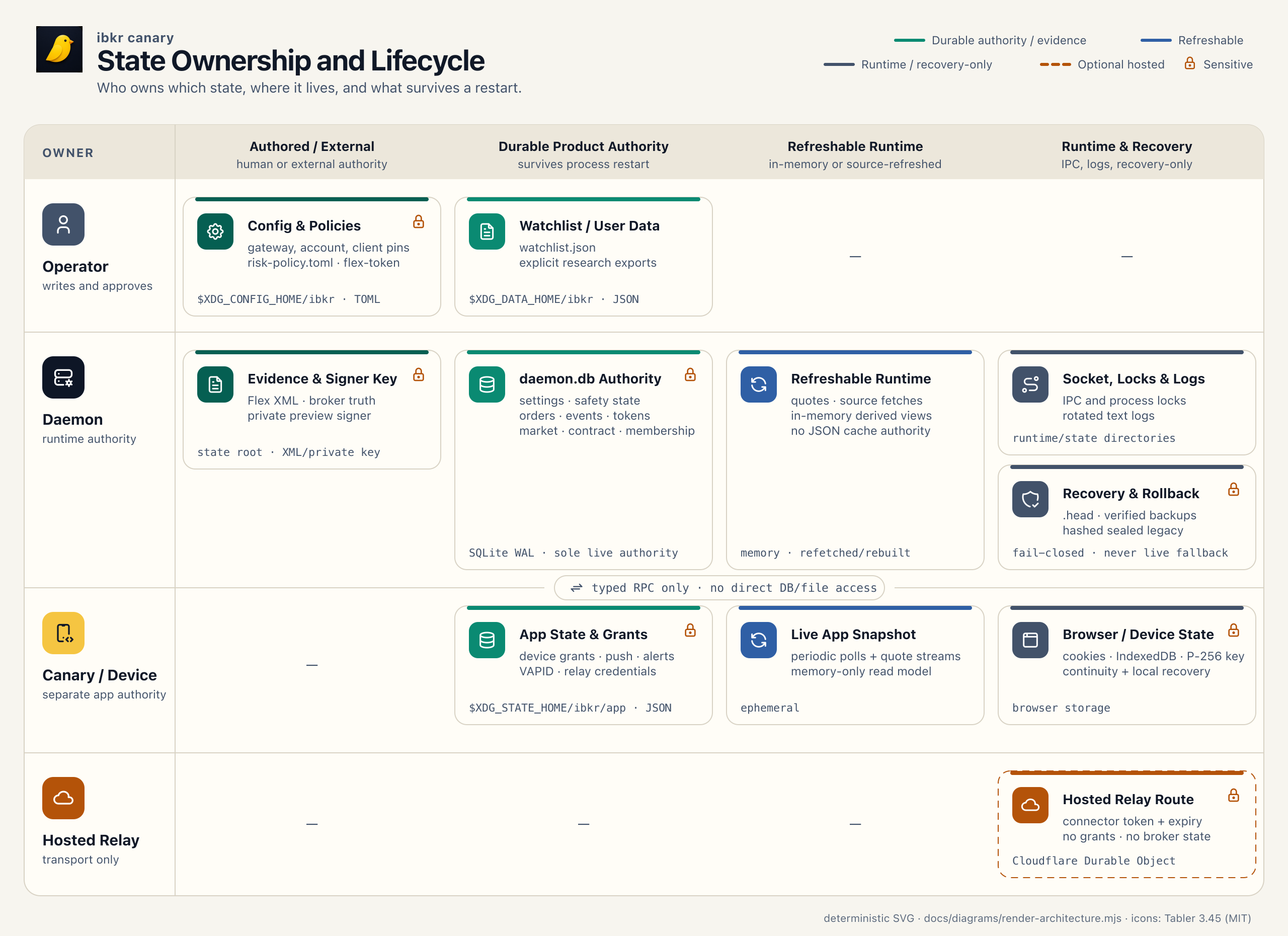

06Data and Persistence

PNG fallback · SVG source generator · Tabler Icons license

Configuration is operator-owned, and daemon state and app state are separate authorities. daemon.db is the daemon's sole live authority for mutable state, append-only events, orders, and retained market observations. Retained Flex XML remains original broker evidence; the daemon transactionally refreshes its typed statement inventory and equity projection in daemon.db from the complete XML set. See Storage for why the daemon uses SQLite, the physical data relationships, truth boundaries, supported query paths, and current recovery limits.

The four history commands — ibkr regime history, ibkr rules history, ibkr canary history, and ibkr recon equity — query daemon.db through typed daemon RPC; MCP and the app currently expose no history surface. Order reads use the same database authority. There is no history.db ingest path, journal scan fallback, rotation job, or dual write after cutover. The legacy decision histories deliberately start empty. Imported historic market and gamma measurements are immutable observations stamped decision_eligible=false in a typed, non-null column (and provenance metadata); they support research but never seed current state or a current verdict, with one narrow cutover repair: when gamma has no current last-good document, the daemon may strictly validate the newest quarantined legacy gamma observation and promote a copy to the gamma state slot with authority_provenance=recovered_legacy_observation. The immutable observation remains byte-exact and decision-ineligible, and the promoted copy is context-only until a fresh current-code compute replaces it. Current state always wins; this is not a generic history fallback or a revival of file authority.

Cutover preserves safety-critical settings, capital/governance continuity, active or uncertain order chains, consumed-token tombstones, conservative order-ID floors, and purge rows and fill cursors. Trading readiness resets; current regime state and regime/rules/canary/proposal/opportunity decision history start clean, as do brief comparison baselines and proposal/opportunity snapshots.

The daemon writes and fsyncs daemon.db.head before publishing the initial database and after every committed mutation. An existing database without that watermark fails closed and requires explicit verified recovery. The runtime verifies the actual application schema objects and recomputes stored content hashes for safety state and append-only evidence; it does not trust the migration ledger or SQLite's structural check alone. It does not automatically repair corruption or restore a backup; recovery and broker/order reconciliation are a separate operational procedure.

Schema readiness is part of daemon startup, before state adapters attach, the RPC socket is served, or either broker connection starts. A fresh installation creates and validates daemon.db directly at the binary's target schema. For an existing database, the daemon compares the on-disk schema version and checksummed migration ledger with that target: an equal version proceeds only after normal validation, a newer version refuses downgrade, and an older version enters the automatic upgrade coordinator.

An upgrade never mutates the published database in place. Under the persistence lock, the coordinator first creates a verified, standalone backup at the exact current authority head, then applies immutable, ordered migrations to an unpublished candidate and runs the full schema, integrity, foreign-key, content-hash, and authority checks. A successful upgrade preserves the authority epoch and evidence, advances the authority head once, and atomically publishes the validated candidate. A small fsynced recovery manifest records the durable upgrade phase so restart can resume deterministically across the watermark and publication boundary; it is transient coordination, not another business-state authority. The pre-upgrade backup remains recovery-only, and a failed or ambiguous upgrade never triggers automatic repair or restore.

SQL schema versions govern tables, indexes, constraints, and triggers. Mutable JSON documents carry independent, kind-specific payload versions and typed migrations. Append-only events are not rewritten to fit a new shape; new event or payload versions retain compatible readers or feed a new projection.

Never persist broker market-data entitlements. Expose observed data type, quality, freshness, and warnings on typed read surfaces instead.

The current Regime result is one immutable, daemon-owned last-good document. Its typed authority health distinguishes fresh, stale, refreshing, and cold unavailable state. Streak, rule-stage, and decision-event projections bind to the exact publication revision, commit time, and semantic fingerprint; a separate receipt makes the single-revision crash window replayable before the RPC socket or a later publication is allowed. An unreceipted revision is withheld atomically from Regime consumers. A clock behind the retained commit is explicit clock_invalid stale context and cannot publish a refresh or relax the rulebook until it catches up.

Regime source quality is not a weak form of market stress. Missing, broken, contradictory, or cadence-overdue required evidence produces the explicit data_quality lifecycle and “Market state undefined — data incomplete.” Only exact producer-authored not_due schedules remain context. Independently current confirmed stress may survive an unrelated source defect with degraded readiness, but every confirming row, source-health record, and direct tape witness must itself be current.

The daemon's alert registry is likewise source-neutral and durable, but its unified delivery authority is deliberately inactive. It stores opaque account/mode-scoped episode and occurrence identities and typed source coverage; the app keeps a separate private inbox/delivery ledger. During shadow commissioning, alerts.shadow_status reports redacted coverage and lifecycle measurements with authority=shadow and delivery_active=false. Existing Canary, governance, and order-integrity delivery owners remain authoritative. The richer Regime and MarketEvents health carried by Canary is advisory during this phase; a versioned producer-authored established-alert projection freezes the pre-program Canary fingerprint and mode eligibility consumed by its legacy monitor. This keeps new health visible without letting a shadow source alter existing unread or push cadence. Scope changes create only bounded, generic previous-context audit rows in the app; they are not recovery, clear, attention, or delivery events. See Alerts and Regime production commissioning.

07Deployment Scopes and Multiple Instances

The default topology is one daemon shared by the CLI, all local MCP adapter processes, and the app, through the canonical Unix socket. A flock-backed lock enforces one daemon per socket directory.

You can run more daemon, gateway, or account scopes, but nothing multiplexes them for you. An isolated stack needs its own config, socket, log, account and client pins, and its own XDG state, cache, and data roots. Most durable paths are XDG-global rather than derived from the socket, so changing only IBKR_SOCKET does not isolate persistence.

08HTTP App and Remote Access

The app is the only HTTP process; it serves through HyperServe (github.com/osauer/hyperserve), the project's companion net/http-shaped server, with method-aware routes, hardened defaults, and SSE formatting. The daemon and the MCP adapter do not serve HTTP at all: the daemon listens on the Unix socket, and MCP speaks stdio.

Routes register in internal/app/http/routes.go in four families: static PWA assets, pairing and auth, the authenticated app API, and the /api/events SSE stream. Handlers read app stores, the live snapshot, or typed daemon calls; they do not invent policy. There is no separate health route; /api/bootstrap and /api/snapshot carry relay and liveness state.

Remote access keeps pairing, auth, session validation, forwarding allowlists, and daemon access on the local machine. The Worker and the Durable Object carry route transport state only. Browser HTTP and SSE requests travel as frames over the app's authenticated outbound WebSocket and stream back through the Worker.

09Observability

The observability layer is thin on purpose: text logs, one health surface, typed database evidence, and bounded typed shadow-calibration counters. There is no external metrics stack and no tracing.

• The daemon writes structured text logs through log/slog. The log_level config key sets the level; the default is info. The log lives at ~/.local/state/ibkr/ibkr-daemon.log and rotates at boot once it passes 64 MiB, keeping one older generation. The app logs to ibkr-app.log.
• ibkr status renders the daemon's status.health report: gateway, session, and TLS state, uptime, background tasks, subsystem health, data quality, data-farm notices, and trading state. It ends in one verdict: ready, attention, offline, or starting.
• Typed read surfaces carry their own source health. Regime clusters, gamma, the market calendar, and governance report stale, partial, degraded, or unknown instead of guessing.
• Append-only SQLite events are the evidence trail for orders, regime, rule, and canary decisions, proposal outcomes, capital events, and risk-policy governance. Mutable documents use compare-and-swap revisions, while coupled state/event changes share one transaction. ibkr brief and the CLI history commands compose or query this typed daemon authority directly.

10Change Flow

Start every new capability with an ownership decision: operator config, daemon database state/event/observation, app-local state, non-authoritative cache, original external evidence, or build flag. Then work outward in order: typed contract, owning behavior, tests, adapters, rendered surfaces, and generated references. Adapters never refetch daemon-owned sources and never recreate risk or trading verdicts.

Market-event flags are daemon-owned observed context. Adapters render or filter the typed market_events.snapshot; they do not refetch Reg SHO, halt, borrow-inventory, borrow-fee, or earnings sources, and they do not duplicate proposal-blocking policy. The daemon also owns the borrow_fee_coverage projection: FTP is global authority, while historical FEE_RATE is bounded by the atomic portfolio rows/receipt, exact ConID and route, and a same-scope check before persistence. Restart discards runtime entitlement, failure, and backoff state; only an exact identical-wire 15-second retry boundary survives so a bounce cannot duplicate the same broker request immediately.

For operator and builder reference, use Trading Policy for the human decision and system-control model, and Storage for state, evidence, SQLite relationships, query boundaries, durability, and recovery. These pages are generated to public HTML from their Markdown sources by the same deterministic chain as this page.
